Metrology & Inspection

Coordinate measuring machines (CMMs), surface profilers, optical inspection systems, and dimensional measurement equipment rely on the zero cogging and high repeatability of linear shaft motors.

Related Videos

3:20

Intermediateapplication examples

Nippon Pulse 10 Axis Gantry XYZ Theta Demo

Advanced demonstration of a sophisticated 10-axis gantry system featuring XYZ linear motion plus theta rotary positioning. This impressive system showcases the capability of linear shaft motors to handle complex multi-axis applications with precision and speed. Watch coordinated motion across multiple axes, including simultaneous linear and rotary moves typical of advanced semiconductor equipment, inspection systems, and precision assembly machines. This video demonstrates the scalability of linear shaft motor technology from simple single-axis applications to complex multi-axis systems. Essential viewing for engineers designing high-performance automation equipment.

semiconductorelectronics assemblymetrology

3:20

Intermediateapplication examples

Nippon Pulse SCR075-50 Nanopositioning Linear Stage, Servo Motor

Precision demonstration of the Nippon Pulse SCR075-50 nanopositioning linear stage achieving sub-micron accuracy. This video showcases ultra-high precision positioning capabilities ideal for semiconductor inspection, metrology, microscopy, and research applications. Watch nanometer-level moves, exceptional repeatability, and vibration-free settling. Learn about encoder resolution, servo loop performance, thermal stability, and environmental isolation requirements for nanopositioning. Essential viewing for engineers working with AFM, SEM, optical inspection, mask alignment, and other applications requiring extreme positioning accuracy. See why linear shaft motors excel at the highest precision levels.

semiconductormetrologyoptics photonics

2:40

Intermediatetechnology overview

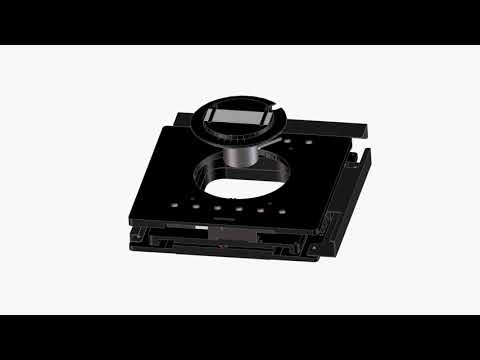

Nippon Pulse - X-Y-Theta Stage Rendering

3D rendering and animation of Nippon Pulse X-Y-Theta stage system showing mechanical design and motion capabilities. This visualization demonstrates how linear shaft motors integrate into precision multi-axis stages for semiconductor, electronics assembly, and inspection applications. See the mechanical layout, cable management, and coordinated XY linear motion plus rotary theta positioning. Perfect for engineers in the design phase of multi-axis systems. Understand the mechanical architecture, component layout, and motion envelope of professional X-Y-Theta stages. Learn about design considerations for building custom stages or specifying standard platforms.

semiconductorelectronics assemblymetrology
